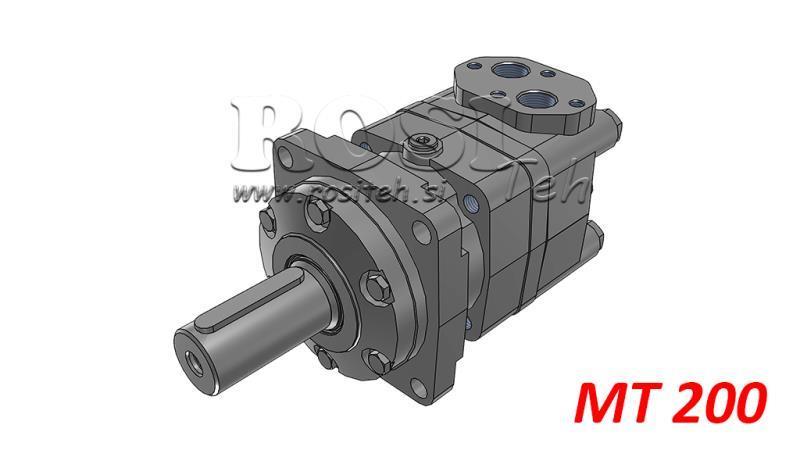

HYDRAULIC MOTOR MT 200
HYDRAULIC MOTOR MT 200
HYDRAULIC MOTOR MT 200
HYDRAULIC MOTOR MT 200

HYDRAULIC MOTOR MT 200

Article code:
13329
OEM:
9990000093328
Tax rate
22 %
Price without VAT:
319,67 €
Price with VAT:
390,00 €
Ref:
4
ADD TO CART

Supplier


Turkey

Return or exchange


14 days

Warranty


6 months

cm/rev


250

Revolutions

Constant

495

[rpm]

Intermittent operation

600

Torque

Constant

73

[Nm]

max.

102

Power [kW]

Constant

33,5

Pressure

Constant

200

[bar]

Intermittent operation

240

max.

280

Oil flow

Constant

125

[L/min]

Intermittent operation

150

Connection thread


3/4"

Weight [kg]


22,2

Shaft diameter [mm]


40

Shaft length [mm]


80





L [mm]

L1 [mm]

L2 [mm]

MT 160

190

16,5

140

MT 200

195

21,5

145

MT 250

201

27,8

151

MT 315

211

37

161

MT 400

221

47,5

171

MT 500

235

61,5

185



DIAGRAM "MT 250"



supplier:
Spain
max. torque (peak):
83 daNm
max. torque (constant):
58 daNm
axle diameter:
40 mm
cm/rpm:
200
thread:
3/4"
product weight:
21,60 kg
max. flow (constant):
125 l/min
max. flow (with breaks):
150 l/min
max. pressure (peak):
280 bar
max. pressure (constant):
200 bar
max. pressure (with break):
240 bar
max. rpm (constant):
615 rpm
max. rpm (with breaks):
750 rpm
return or exchange:
14 days
length:
shaft - 82mm
warranty:
6 months
output connection:
drainage - 1/4"
max. power (constant):
34kW
